Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type

Name: Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type
Brand: ALSTON
Price: 16000 USD

Quality Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type for sale

Brand Name : ALSTON

Model Number : ATM3316DT

Certification : CCC, ISO, CE

Place of Origin : CHINA

MOQ : 1 unit

Price : $16000-$25000

Payment Terms : T/T, L/C, Western Union

Supply Ability : 30 units per month

Delivery Time : 15-30 working days

Packaging Details : Nude, Waxing before delivery

Product Name : Rear Dump Trailers

Type : Truck Trailer

Suspension : Mechanical Suspension

Axle : 4 Axle

Brake System : WABCO Valve

Tyre : 12R22.5

Dimension : 9600x2550x3860mm

Loading Capacity : 50 Tons

Contact Now

Hydraulic Cylinder 4 Axles U Type 50 Tons End Dump Trailer Tipper Trailer

ALSTON Rear Dump Trailers Advantages:

Our heavy duty rear dump trailers adopt the method of back-turning self-unloading, which can effectively
improve the transportation efficiency of the bulk unloading of bulk goods by the loader.
The frame and the hydraulic dump trailer’s longitudinal beam are welded with high-quality manganese
plates, and the cargo box has two types of dustpan and rectangular. The hydraulic rear dump trailers are
with high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no deformation.

The dump truck trailer is suitable for the transportation of bulk and bulk goods such as coal, ore, and building
materials. Dump truck trailers, also known as hydraulic dump trailers, are composed of automobile chassis,
hydraulic lifting mechanism, power take-off device and cargo compartment.

REAR DUMP TRAILERS SPECIFICATIONS

	Model	3 axle 25cbm Rear Dump Trailer
	Function	Transport sand, stone, gravel
Dimension
	Overall Size (L×W×H)mm	9600×2550×3860mm
	Inner Size (L×W×H)mm	8300×2330×2000mm
	Wheel base	6870+1310+1310mm
Weight
	Payload	68,000kg
	Tare weight	Approx12,000kg
	G.V.W.R.	Approx 80,000kg
Body details
	Main beam	Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.
	Body thickness	6mm
	Bottom thickness	8mm
	Hydraulic System	Full set of HYVA Hydraulic System 202
Frame
	Axle	heavy duty, 4×13Ton capacity, FUWA brand
	Suspension	Leaf spring suspension, 90mm×16mm×10pcs
	Tire	12R22.5 16units Taitong Brand
	Kingpin	50mm/90mm removable

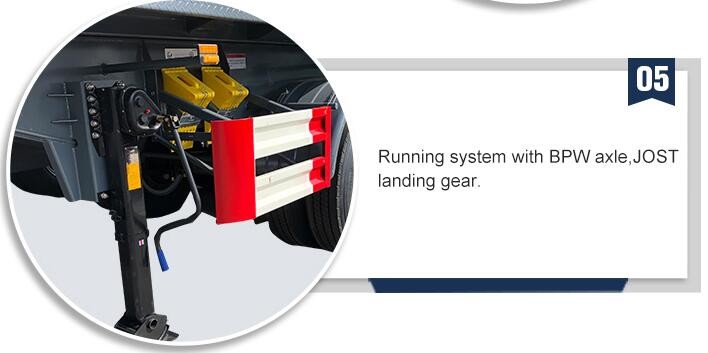

	Landing gear	Yahua brand, 28ton, double speed, heavy duty
	Tool box	1pcs
	Spare wheel carrier	2pcs
